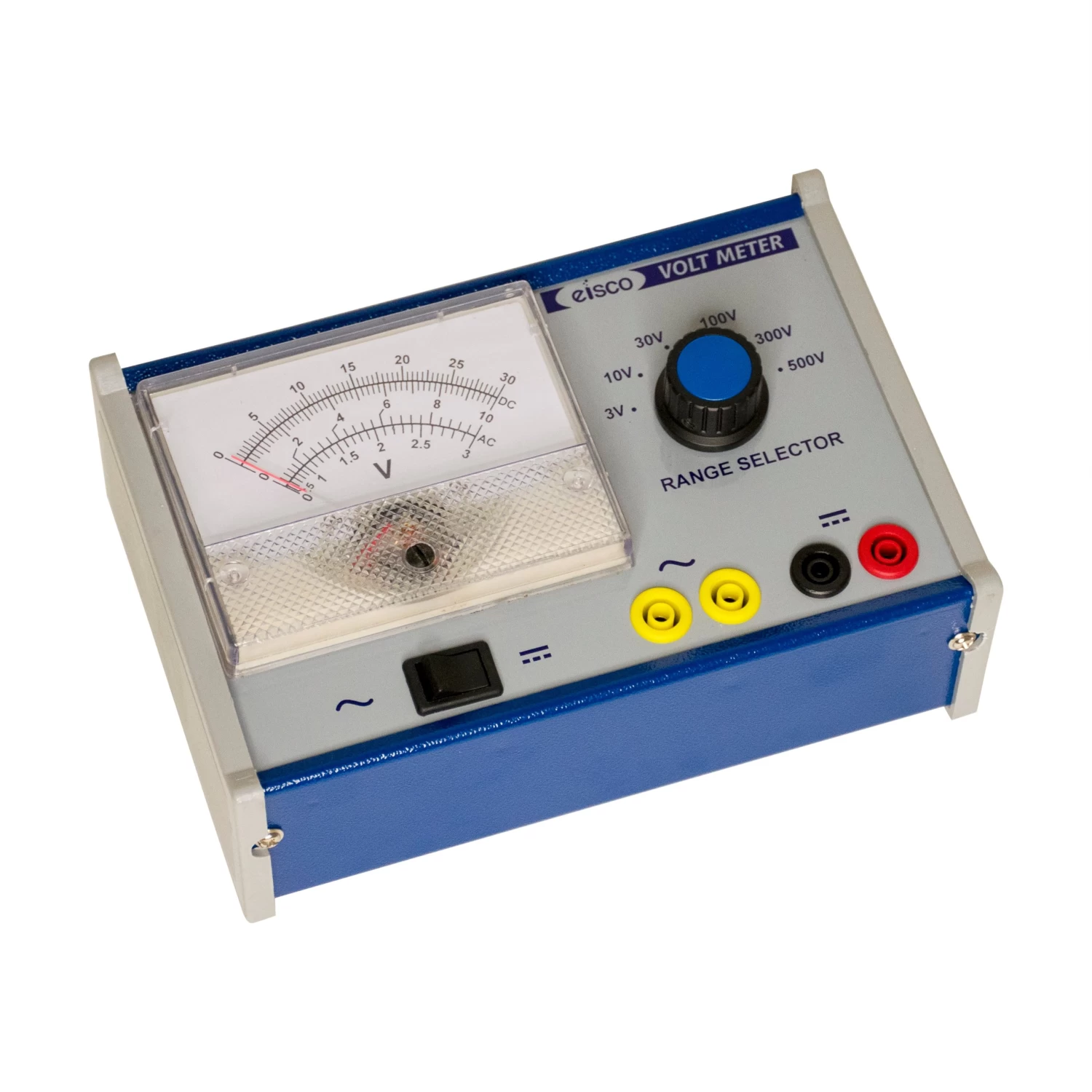

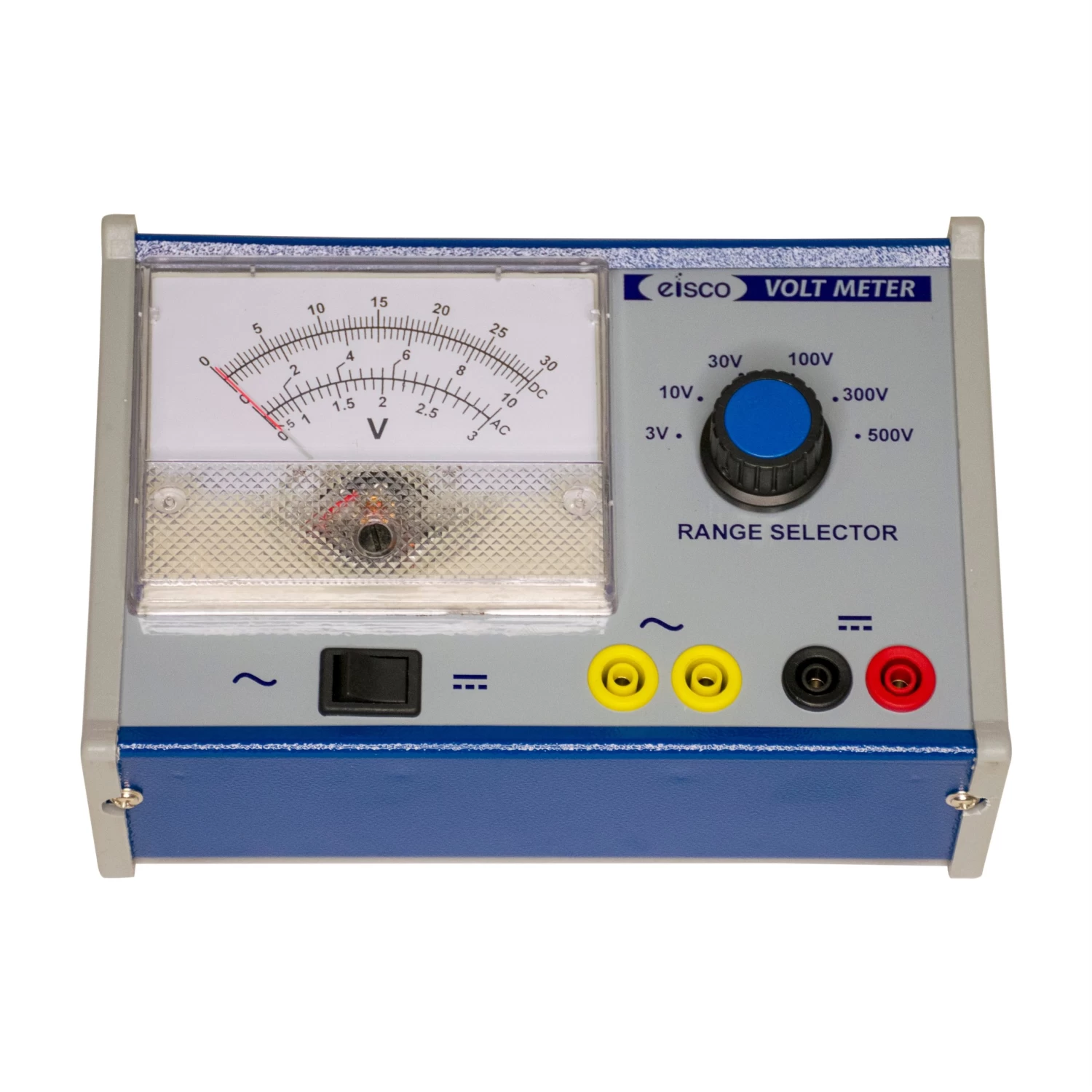

AC / DC Analog Voltmeter – Moving Coil – Multi Range 0-500 V – Double Measuring Scale -Labs

• MEASURE AC & DC VOLTAGE WITH ONE METER || Multiple lead ports, double measuring scale, and toggle switch for measuring AC or DC inputs.
• EXTREMELY WIDE VOLTAGE RANGE || 6 range settings: 3V-10V-30V-100V-300V-500V.
• INNOVATIVE DIAL FORMAT || Double scale calibrated at three different ranges supports readings over a wide range, and is enclosed by a 4×3″ clear plastic cover.
• DURABLE & VERSATILE CONSTRUCTION || Aluminum outer casing protects internal mechanism. Simple box design allows the unit to be stood upright or laid flat on 4 rubber feet.
• IDEAL TEACHING TOOL || Moving needle of the analog meter helps students better understand how circuits work.

Moving Coil Multi Range Voltmeter measures both DC & AC voltage. The operation of these meters depend on the reaction of the current circulating in the moving coil and a field of a fixed permanent magnet. The direction of the movement rotation depends on the direction of the current flow (polarity) in the circuit, accommodating a linear scale. The innovate double scale design is calibrated at three different ranges to support voltage readings over a very wide 6-range setting. A durable aluminum outer casing protects inner mechanisms. Meter can be stood up or laid flat on 4 rubber feet. Leads not included.

• Range selector settings: 3V-10V-30V-100V-300V-500V
• Lower scale (AC): 3V, 10V
• Upper scale (AC/DC): 3V DC, 10V DC, 30V DC, 100V AC/DC (10X lower range calibration), 300V AC/DC (10X upper range calibration), 500V AC/DC (50X lower range calibration)
• Accuracy: DC ±2% FSD; AC ±2.5% FSD
• Overall size: 7.4″W x 3.4″D x 5″H; Size of dial: 4″ x 3″
