Digital Microscope With Eyepiece Camera, EXC-103-EP – Trinocular Head, 40-1000X Magnification, Cordless LED Illumination – 5.1 MP Image & 26 FPS Video Capture – USB 2.0 Output

• MICROSCOPE WITH EYEPIECE CAMERA || This trinocular microscope comes with an eyepiece camera for capturing high-resolution live images and video to your computer
• CRISP IMAGES AT 40X-1000X || High-quality DIN optics in 4x, 10x, 40xR*, and 100xR* (*spring-loaded) objectives provide clear, 40X-1000X magnification. Variable LED control delivers bright, even illumination for excellent image contrast
• ERGONOMIC || Features interpupillary adjustment on the binocular viewing objectives and low positioned coaxial focusing mechanism for complete ergonomic comfort to users during extended viewing periods
• CORDLESS & PORTABLE || With rechargeable LED illumination, built-in carry handle, and cord wrap, this microscope is highly portable, allowing you to take it wherever you need
• DURABLE CONSTRUCTION || The rugged, die-cast aluminum frame with all metal gears and anti-mold optics is designed for years of use

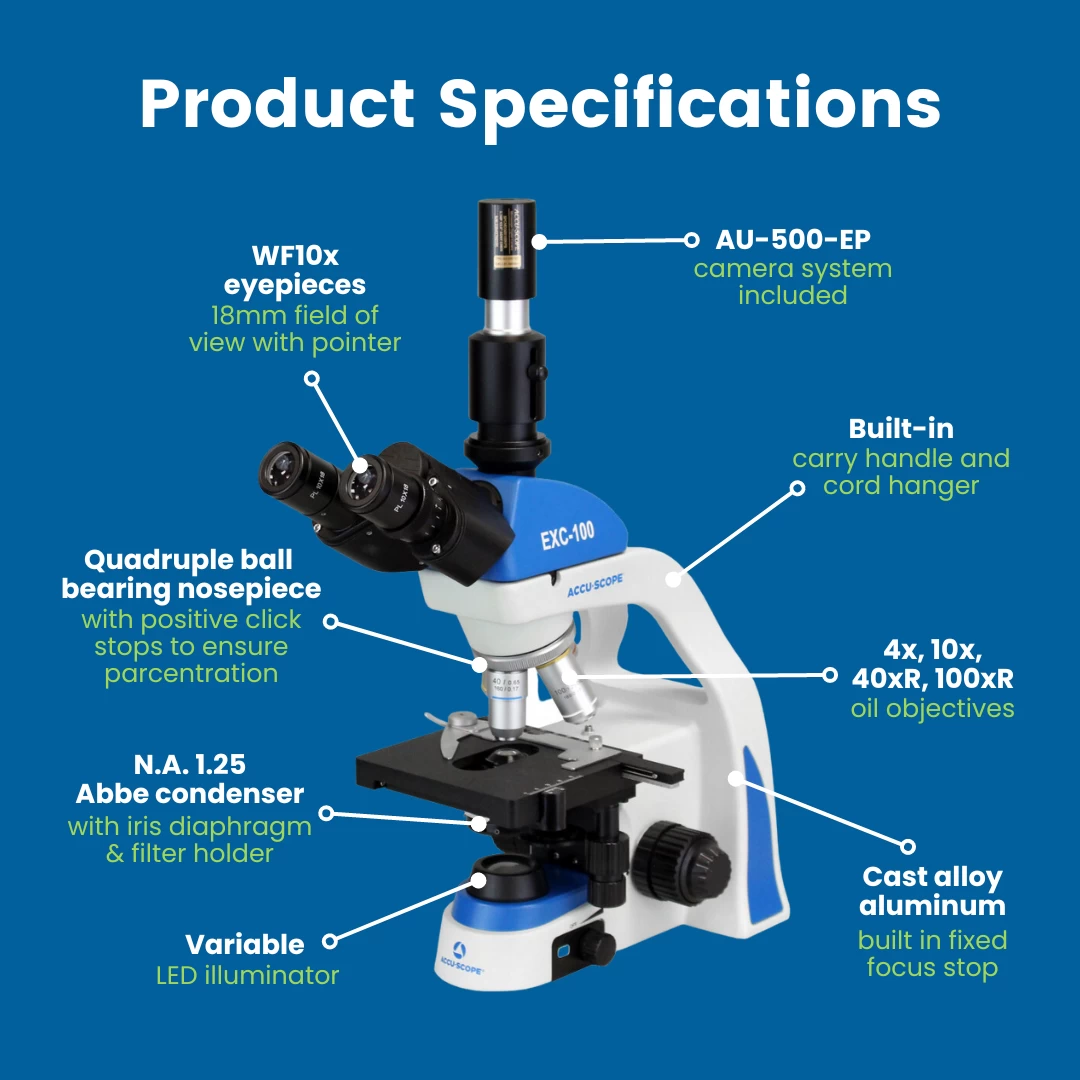

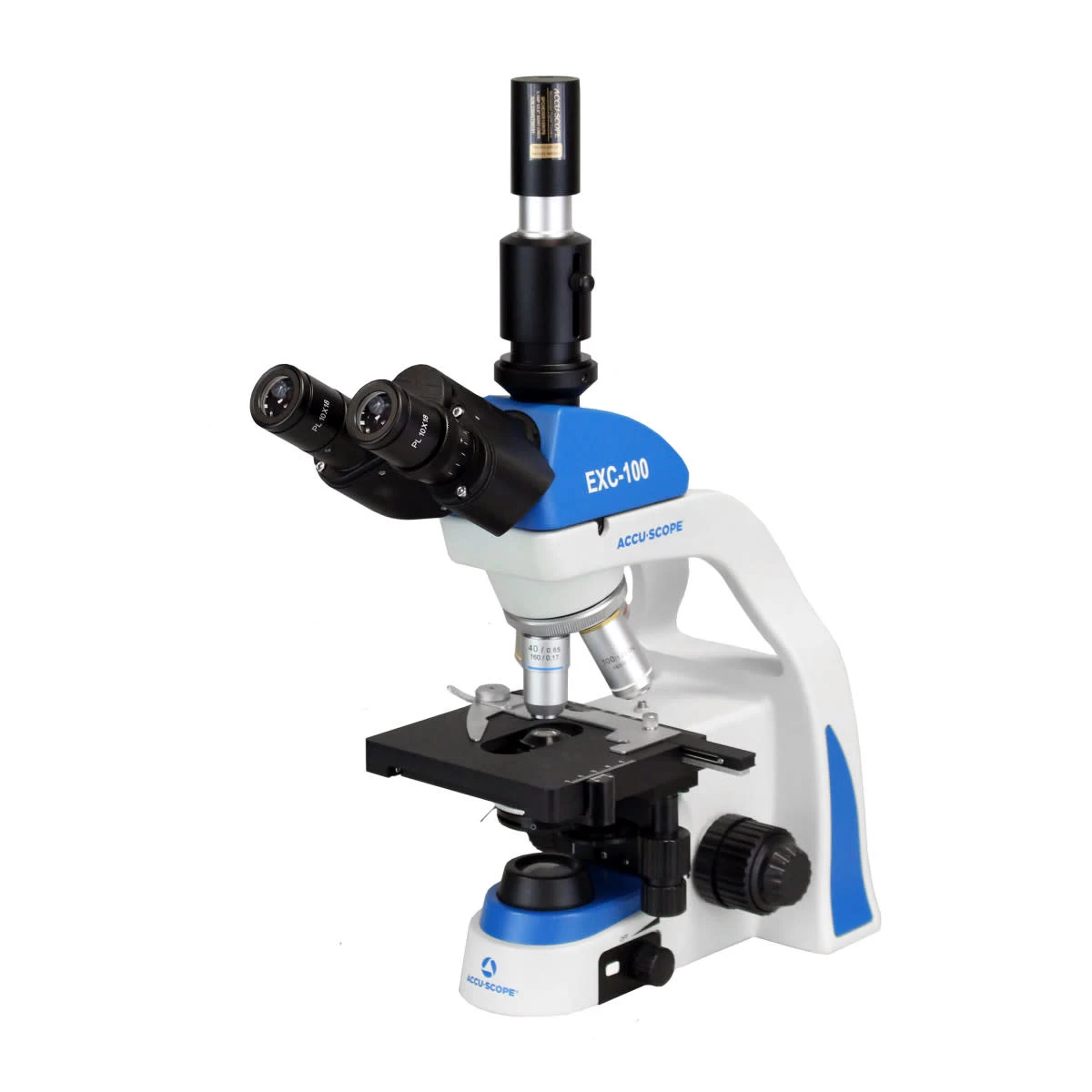

The Accu-Scope EXC-103-EP features a 360° rotatable trinocular viewing head; 30° inclined paired PL10x/18mm eyepieces (paired – one w/pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, 40xR and 100xR oil objectives; mechanical stage with low position coaxial coarse and fine focusing controls with adjustable tension control; and Abbe condenser on spiral mount, N.A. 1.25 with iris diaphragm & filter holder. The variable LED illuminator is powered by power cord or rechargeable battery for portability. A built-in fixed focus stop allows for rapid focusing while protecting specimens. Includes dust cover, power cord, and manual.

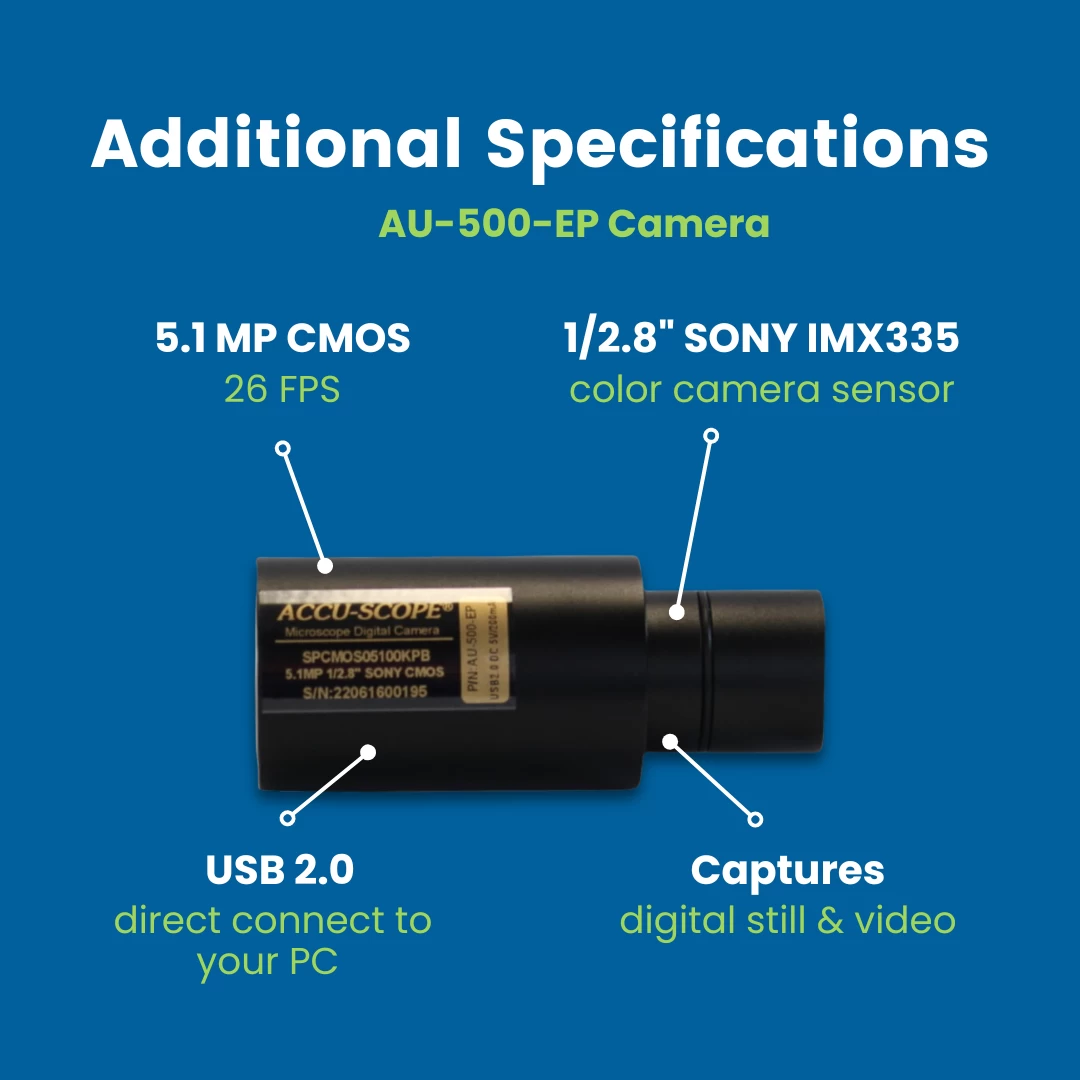

The included ACCU-CAM 500-EP Eyepiece Camera provides an excellent balance of image quality for basic microscopy imaging applications. A Sony CMOS color camera sensor delivers clear, crisp 5.1MP images to your PC or Mac computer via a USB 2.0 cable. ACCU-VIEW Imaging software included for camera controls, live viewing, image capture and measurement, annotation, and more.

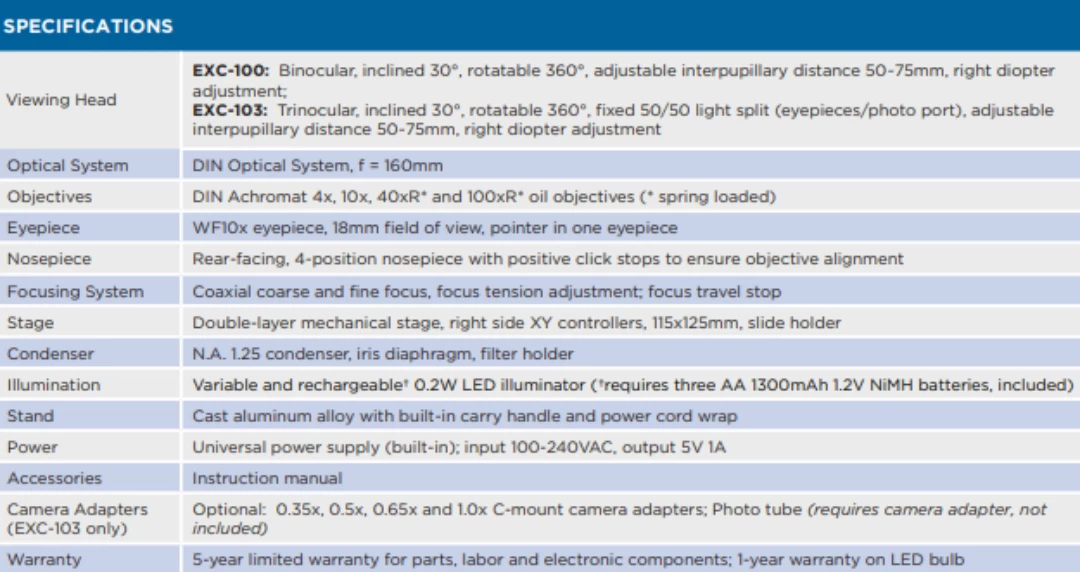

Specifications

– Optical System: DIN Optical System, f=160mm, Anti-Mold

– Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm.

– Camera: ACCU-CAM 500 EP; Sensor: 1/2.8″ Sony IMX335 color CMOS, 2.0µm pixels; Dynamic/Static Resolution: 2592 x 1944; Frame Rate: 26fps @ 2592×1944, 26fps @ 1280×960, 26fps @ 640×480; Image Capture: Image saved to PC via USB 2.0; Advanced Camera Controls: live/still image measurement and annotation, flat field correction, extended depth of focus (focus stacking), image stitching (requires mechanical stage); System Requirements: Windows 7 and up (32 and 64-bit), Mac OS 10.6 and up

– Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering.

– Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.

– Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).

– Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale.

– Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder.

– Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger.

– Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable.

– Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears.

– Power: Power adapter delivers 5V/1A to microscope from 100V-240V input

– Accessories: USB 2.0 mini cable, ACCU-View software USB stick, dust cover and instruction manual included.

– Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE.

– Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

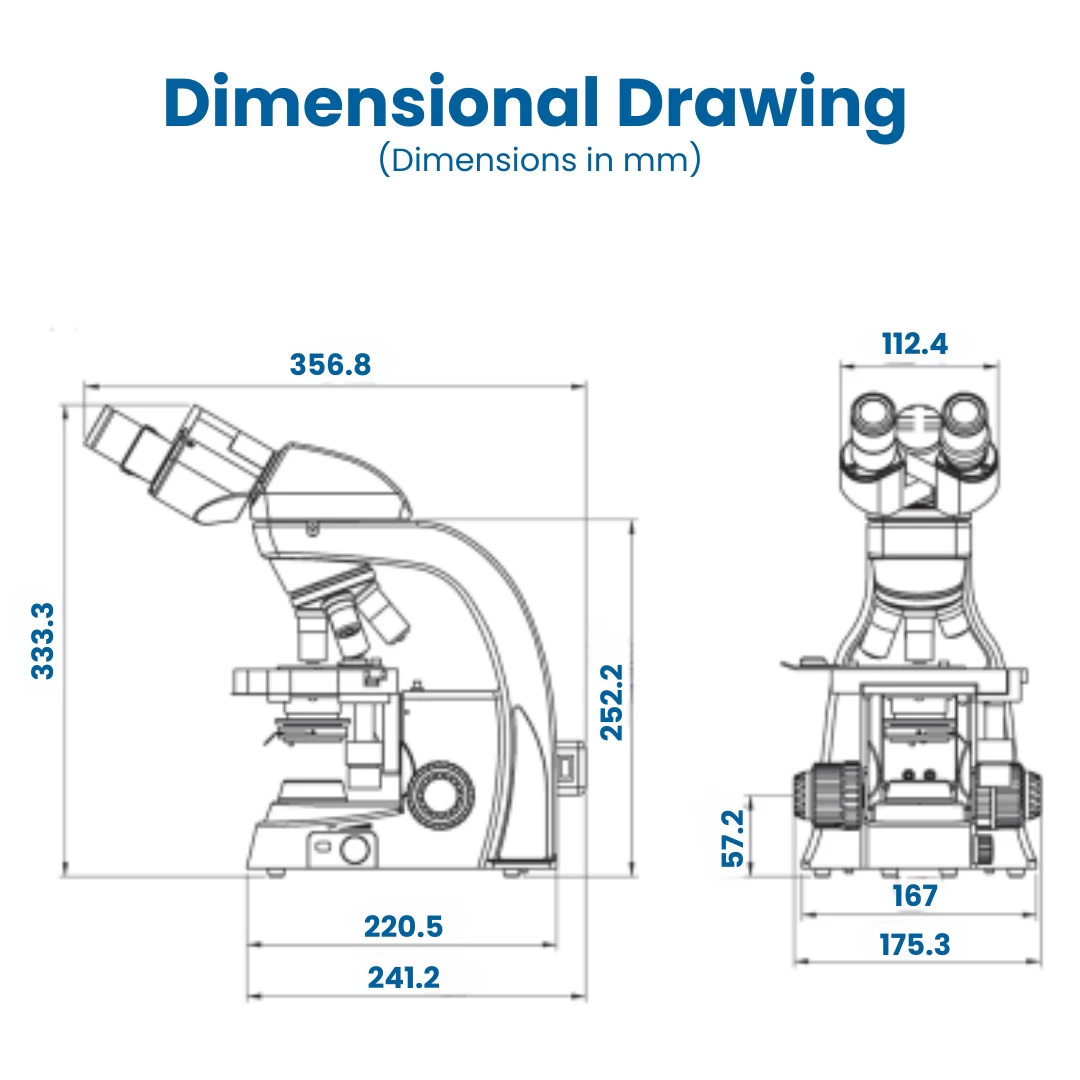

– Microscope Dimensions (LWH): 255mm x 198mm x 368mm
