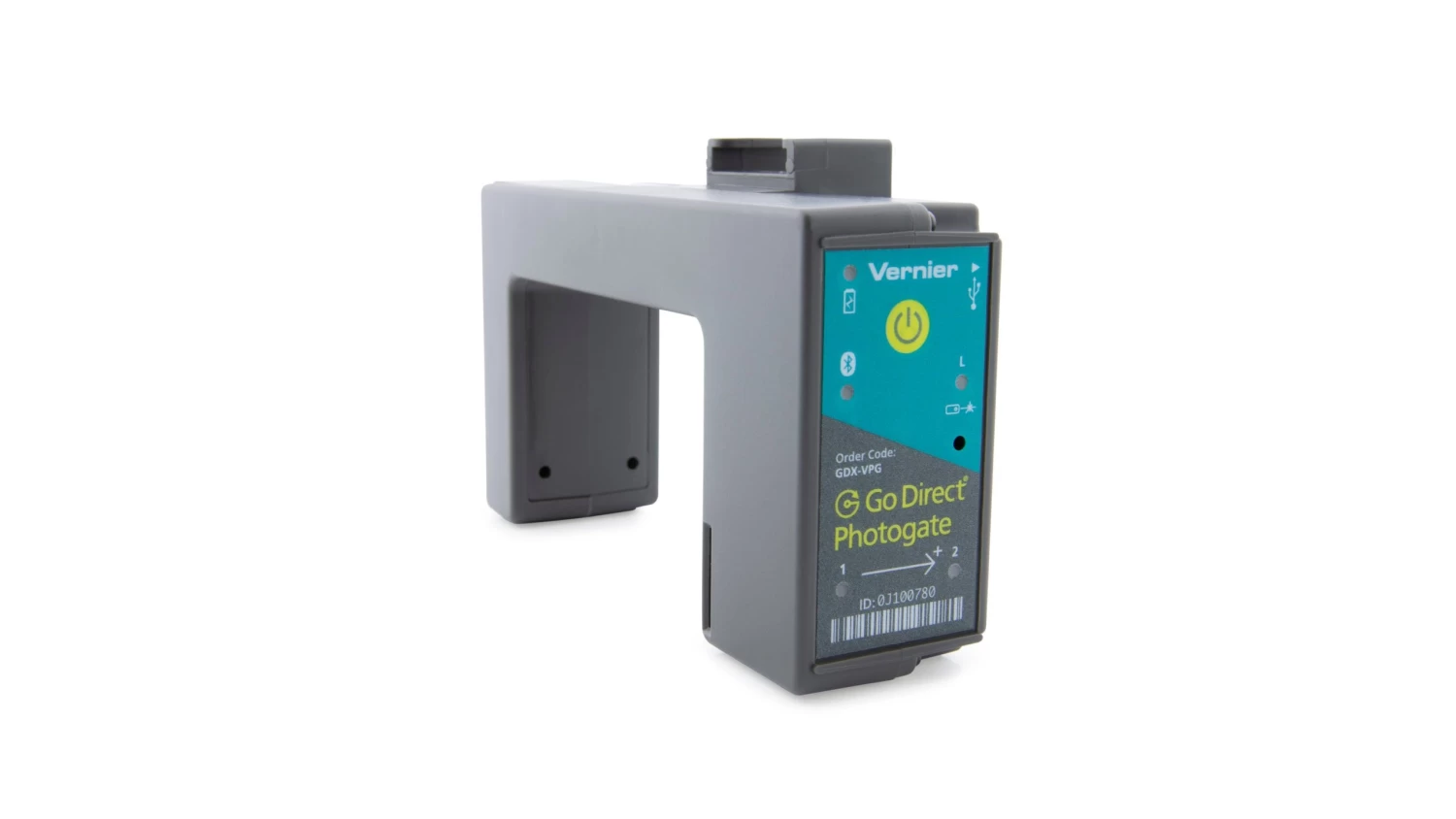

Go Direct® Photogate Sensor

• Capture accurate and reliable timing measurements with Vernier Go Direct Photogate
• Easy-to-use sensor with wireless connectivity for real-time data collection
• Compatible with multiple devices and software for seamless integration
• Durable design for use in various environments and applications
• Ideal for scientific research, classroom experiments, and industrial processes

IMPORTANT – FEDEX GROUND SHIPPING ONLY.
Product is NOT eligible for Free Shipping and other promotions.

Using Go Direct Photogate, students are able to easily and accurately measure velocity and acceleration to study the movement of an object in free fall, rolling objects, collisions, and pendulums, without needing to know anything about the geometry of the object. Go Direct Photogate also includes a single laser gate for use with objects passing outside of the arms of the sensor. Using the laser gate requires a visible-light pen laser (not included).

Wirelessly connect most Go Direct sensors to the Graphical Analysis Pro app in just seconds and collect, visualize, and interact with data in real time, from anywhere and on multiple devices

• Live data sharing during demonstrations. Great for in-person and remote learning
• Graph types, including bar graphs, histograms, and FFTs, plus the ability to plot categorical data
• Video-sensor data sync to replay, speed up, slow down, and pause recorded experiments at key moments in time
• Library of over 45 sample experiments ready to be analyzed by students as prep work, homework, or a makeup assignment
• User-defined curve fits, which allow advanced and more meaningful data analysis

Rechargeable Battery

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from the Vernier Graphical Analysis™ Pro app, as well as LabQuest®3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting – no interruptions or inconvenience to you or your students.

Wireless or Wired

Go Direct sensors connect directly to your mobile device, Chromebook™, or computer using the Vernier Graphical Analysis™ Pro app – no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

• Infrared source: Peak at 880 nm
• Gate width: 77.5 mm
• Internal gate separation: 20 mm
• Distance from internal gates to bottom of photogate arms: ~10 mm
• Distance from internal gates to sides of photogate arms: ~5 mm
• Gate LED indicators: Off for unblocked gate, on for blocked gate
• Battery: 650 mAh Li-Poly Rechargeable
• Battery life (single full charge): ~10 hours continuous data collection
• Battery life (long term): ~300 full charge cycles (several years depending on usage)
• Connections
  • Wireless: Bluetooth
  • Wired: USB

What’s Included

• Go Direct Photogate
• Accessory Rod
• Micro USB Cable
