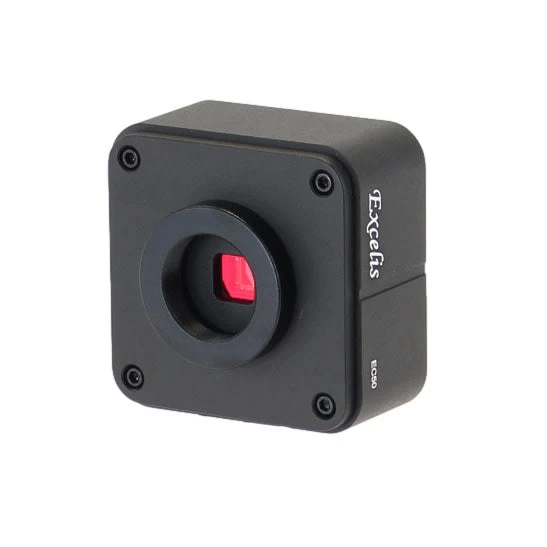

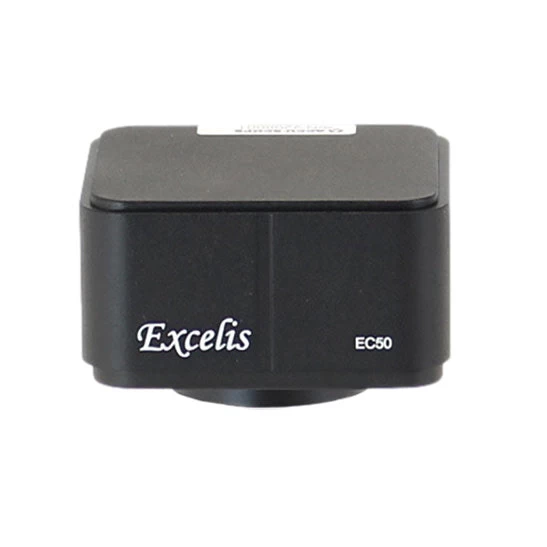

Microscope Camera, Excelis EC50 – 5 MP Image & 29 FPS Video Capture – USB 2.0 Output

• VIEW SPECIMENS ON A COMPUTER || Reduce eyestrain and analyze specimens by capturing high-resolution live images and video from your microscope’s stage to your computer via USB 2.0 connection
• CRISP IMAGES & VIDEO || A Sony STARVIS CMOS sensor with rolling shutter delivers high resolution, full-color images and video at 5 megapixels and almost 30 frames per second
• ADVANCED IMAGE PROCESSING || Included imaging software features advanced image processing controls such as real-time intelligent flatfield correction; static and dynamic measurements and annotation; automatic counting; and much more

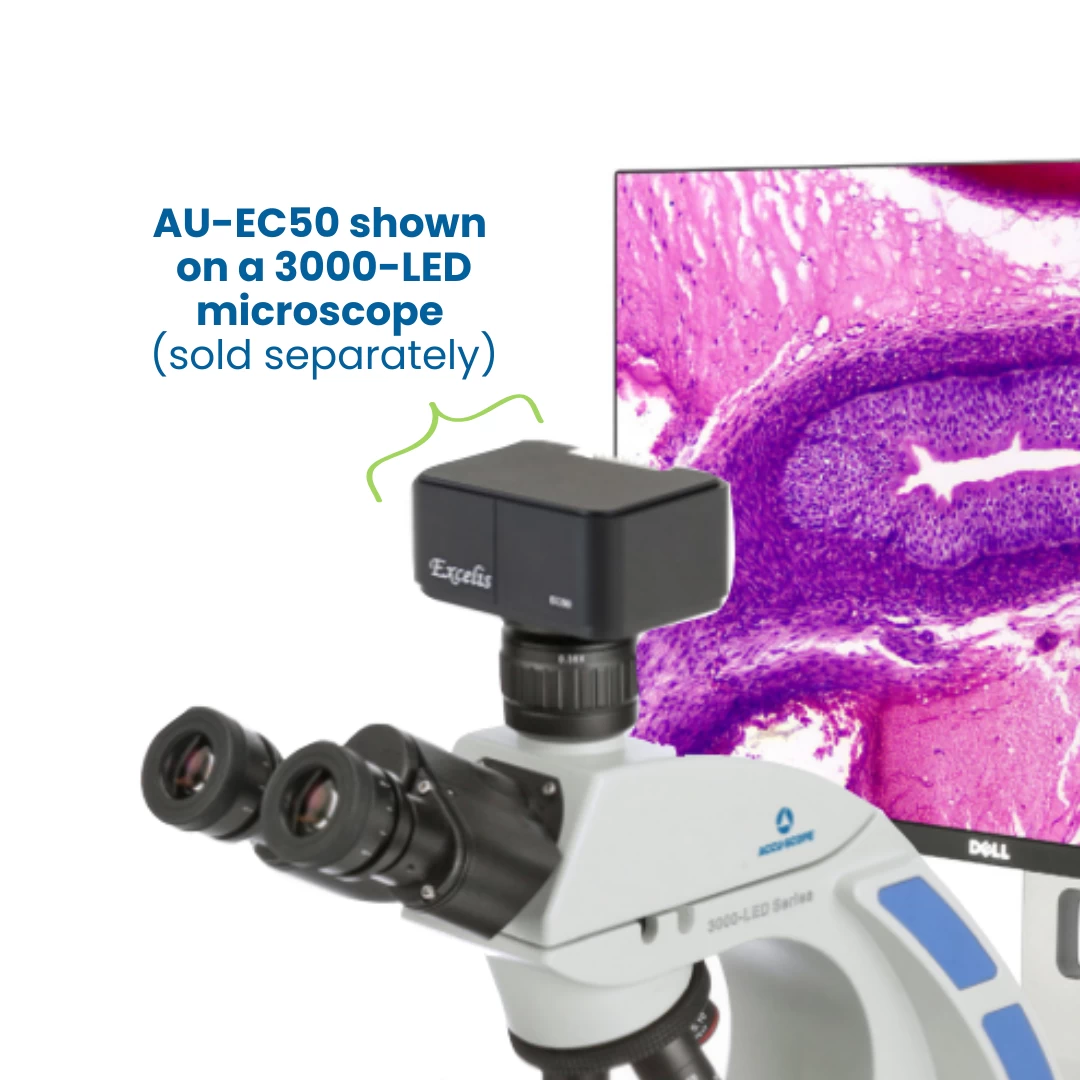

• WORKS WITH ANY MICROSCOPE || Standard C-mount easily attaches to your microscope’s camera port (trinocular port) or monocular/binocular head with an eyepiece adapter (not included)
• GREAT FOR PROFESSIONAL LABORATORIES, CLASSROOMS, & HOUSEHOLD || The superior performance of the Excelis Microscope Camera makes it ideal for a variety of applications including biology education, medical, veterinary, material sciences, forensics, and more

The Excelis EC50 Color Microscopy Camera provides an excellent balance of image quality and affordability for routine microscopy imaging applications. A Sony STARVIS CMOS sensor is at the core of the EC50 and features a rolling shutter for high resolution and great color at high frame rates. Data transfer across a USB 2.0 cable ensures stunning live views of the specimen. CaptaVision+ software brings excellent camera controls and new dimensions to imaging including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more.

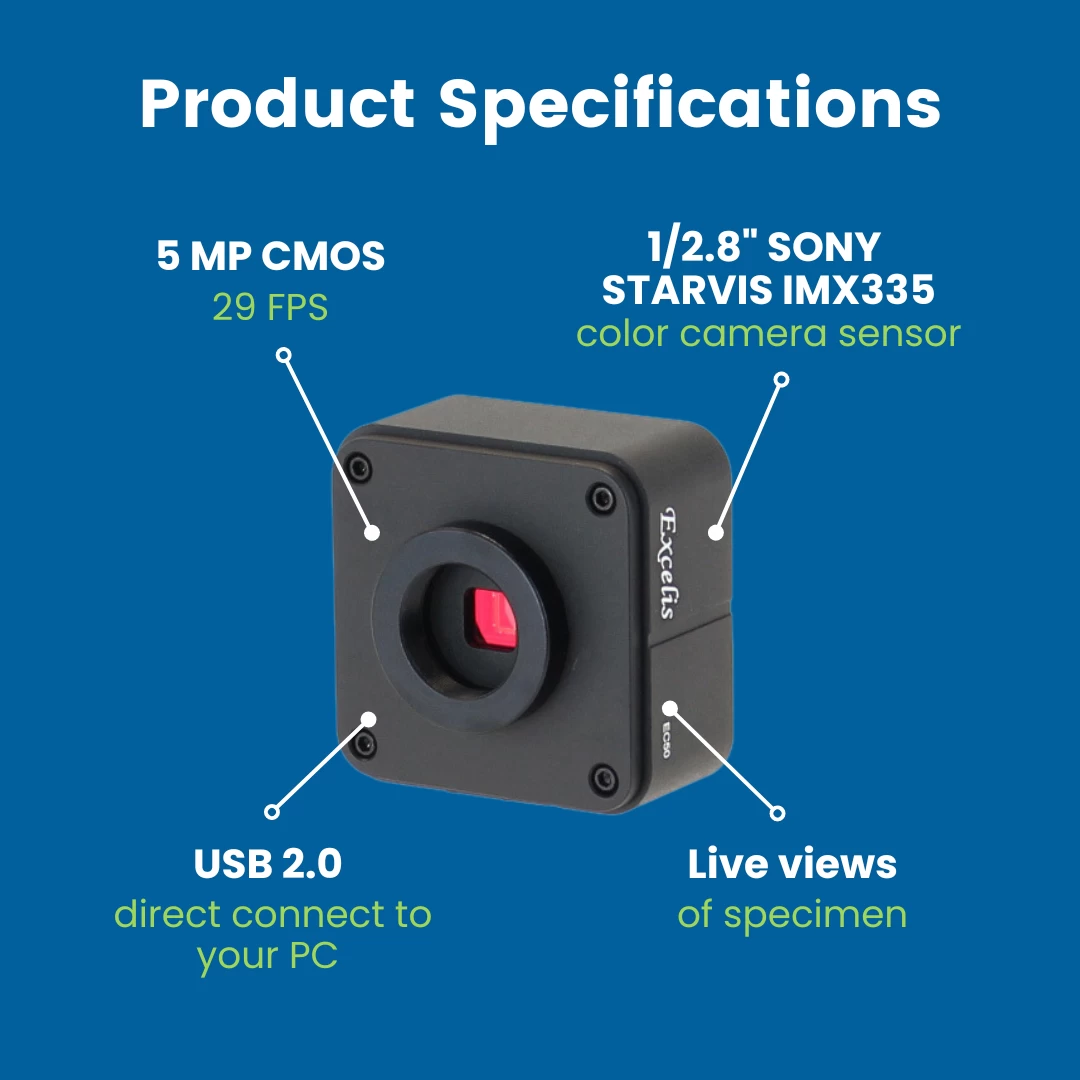

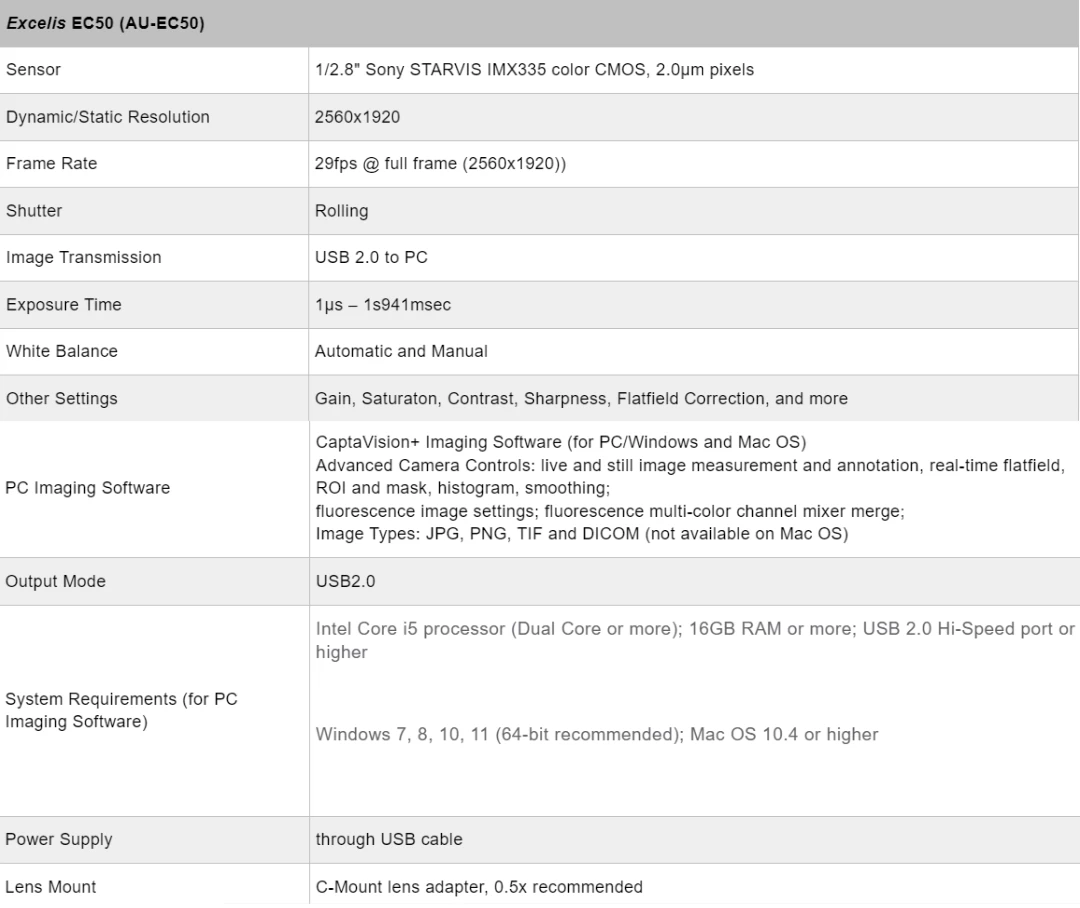

Specifications

– Sensor: 1/2.8″ Sony STARVIS IMX335 color CMOS, 2.0µm pixels
– Dynamic/Static Resolution: 2560×1920
– Frame Rate: 29fps @ full frame (2560×1920))
– Shutter: Rolling
– Image Transmission: USB 2.0 to PC
– Exposure Time: 1µs – 1s941msec
– White Balance: Automatic and Manual
– Other Settings: Gain, Saturaton, Contrast, Sharpness, Flatfield Correction, and more
– PC Imaging Software: CaptaVision+ Imaging Software (for PC/Windows and Mac OS)
– Advanced Camera Controls: Live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge
– Image Types: JPG, PNG, TIF and DICOM (not available on Mac OS)
– Output Mode: USB2.0
– System Requirements (for PC Imaging Software): Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher; Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher
– Power Supply: Through USB cable
– Lens Mount: C-Mount lens adapter, 0.5x recommended
– Camera Dimensions (LWH): 68 x 68 x 42.5mm
