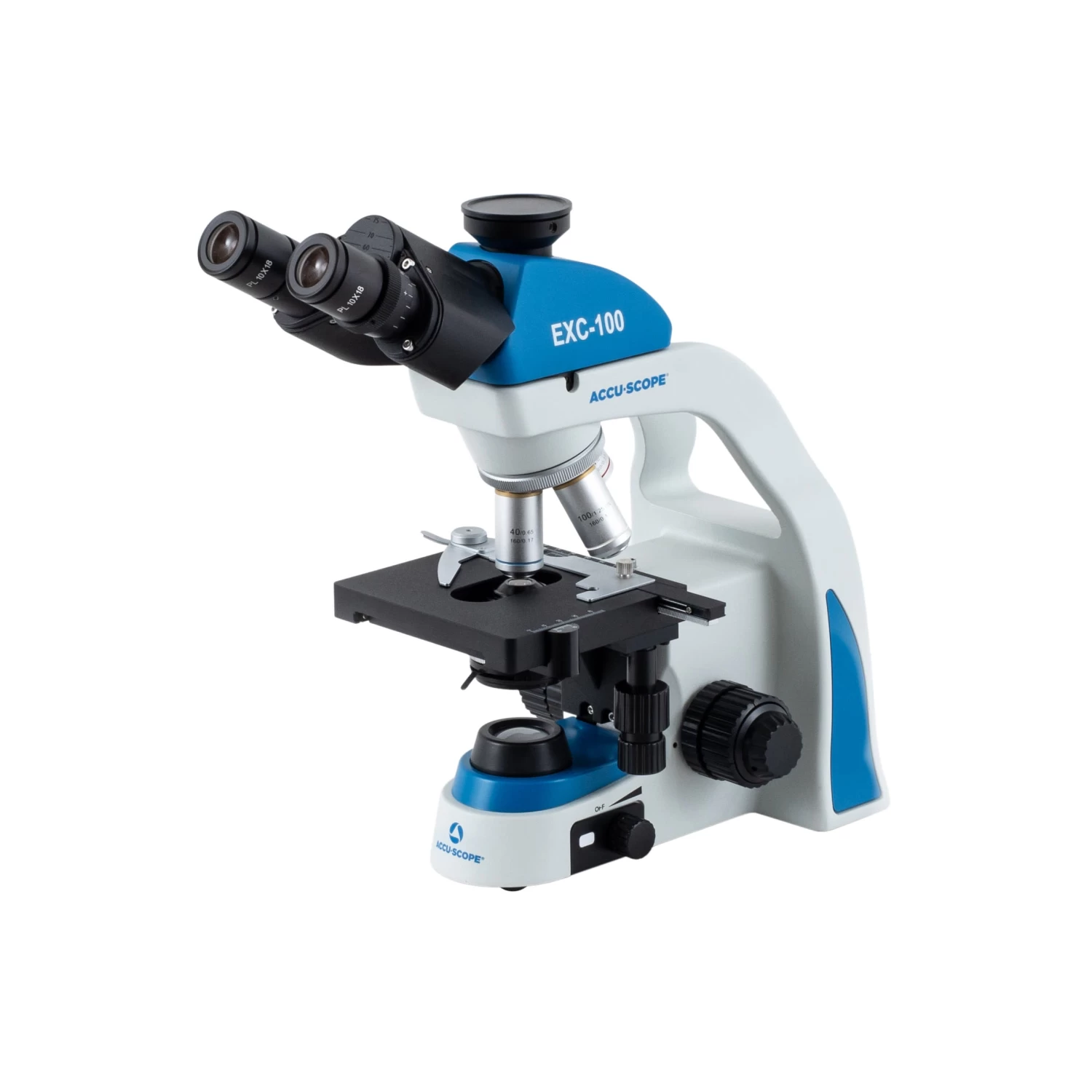

Microscope EXC-103 – Trinocular Head, 40-1000X Magnification, Achromat Objectives, Mechanical Stage, Iris Diaphragm, Cordless LED Illumination

• TRINOCULAR HEAD|| Fitted with two 10X widefield binocular eyepieces and one 10X vertical photo port for simultaneous viewing with an attached microscope camera (not included)
• GREAT IMAGES || Ideally suited for the classroom environment, the EXC-103 Microscope provides clear images during observation, with front lens surfaces that are flush and easy to clean. The achromat 4x, 10x, 40xR*, and 100xR* oil immersion DIN objectives provide 40X-1000X magnification. Variable LED control with Abbe condenser and iris diaphragm delivers bright, even illumination for excellent image contrast
• ERGONOMIC || Features interpupillary adjustment on the binocular viewing objectives and low positioned coaxial focusing mechanism for complete ergonomic comfort to users during extended viewing periods
• CORDLESS & PORTABLE || With rechargeable LED illumination, built-in carry handle, and cord wrap, this microscope is highly portable, allowing you to take it wherever you need
• DURABLE CONSTRUCTION || The rugged, die-cast aluminum frame with all metal gears and anti-mold optics is designed for years of use

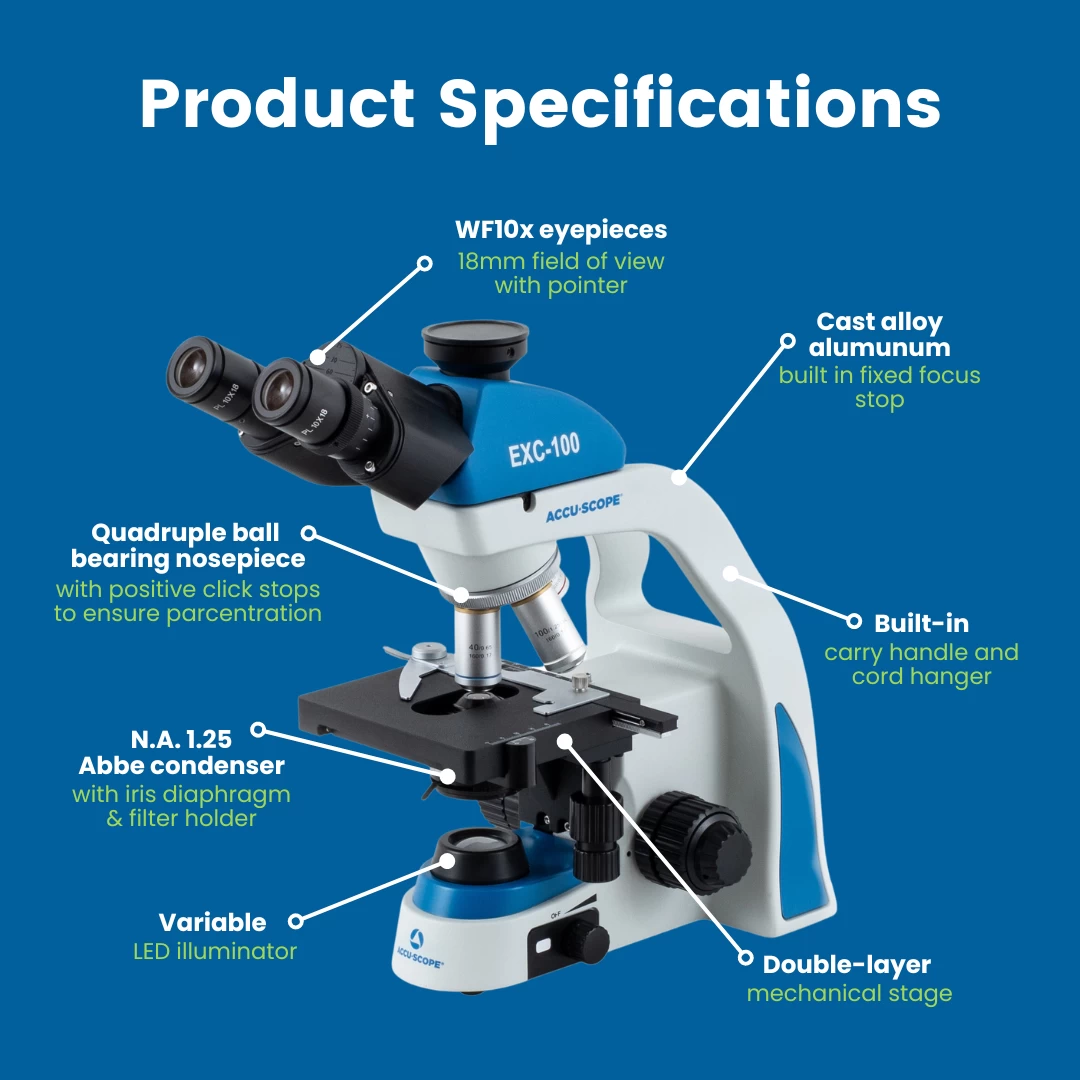

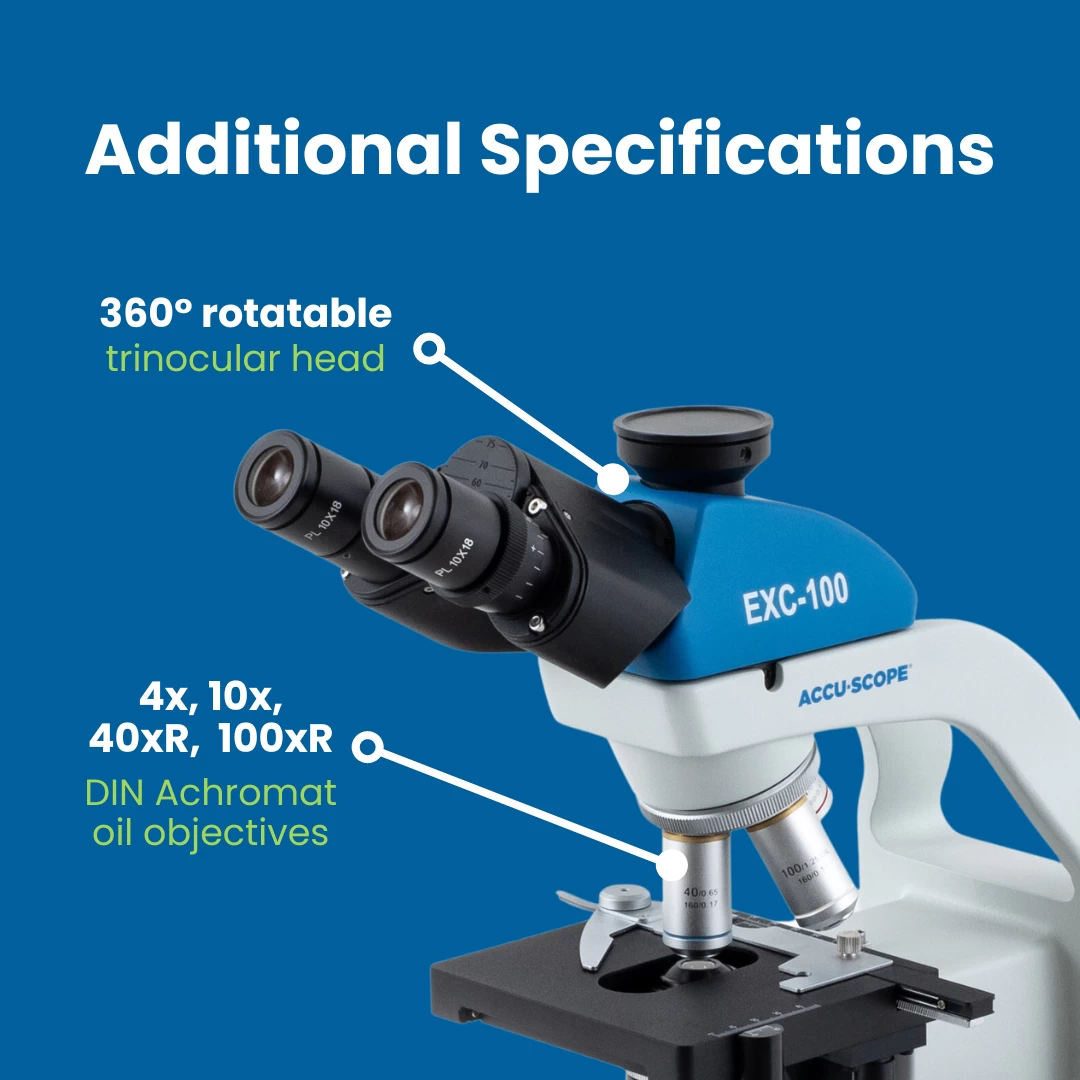

The Accu-Scope EXC-103 features a 360° rotatable trinocular viewing head; 30° inclined paired PL10x/18mm eyepieces (paired – one w/pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, 40xR and 100xR oil objectives; mechanical stage with low position coaxial coarse and fine focusing controls with adjustable tension control; and Abbe condenser on spiral mount, N.A. 1.25 with iris diaphragm & filter holder. The variable LED illuminator is powered by power cord or rechargeable battery for portability. A built-in fixed focus stop allows for rapid focusing while protecting specimens. Includes dust cover, power cord, and manual.

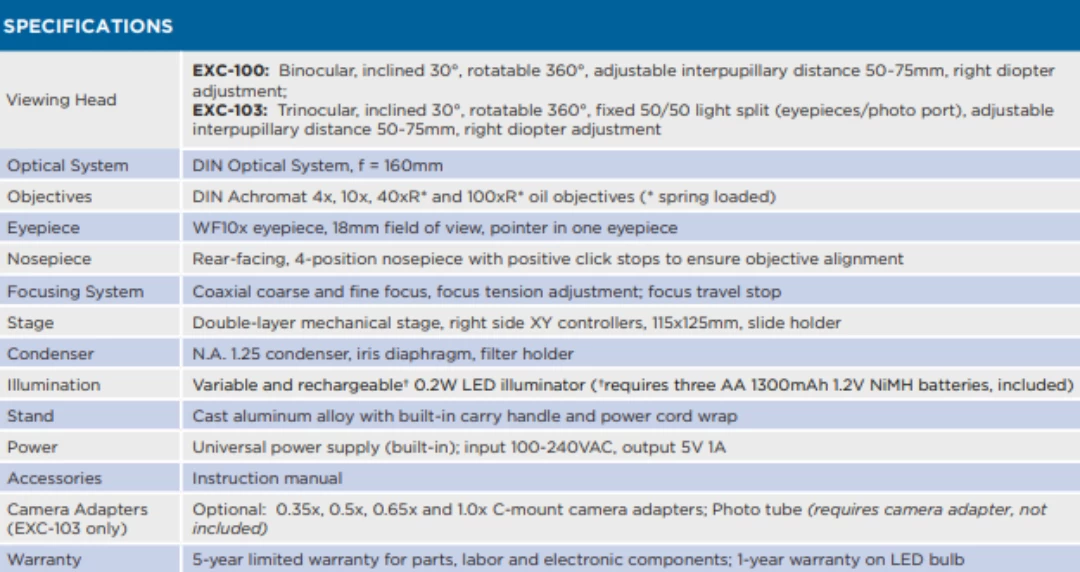

Specifications

– Optical System: DIN Optical System, f=160mm, Anti-Mold

– Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm.

– Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering.

– Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.

– Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).

– Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale.

– Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder.

– Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger.

– Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable.

– Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears.

– Power: Power adapter delivers 5V/1A to microscope from 100V-240V input

– Accessories: Dust cover and instruction manual included.

– Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE.

– Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

– Microscope Dimensions (LWH): 255mm x 198mm x 368mm
