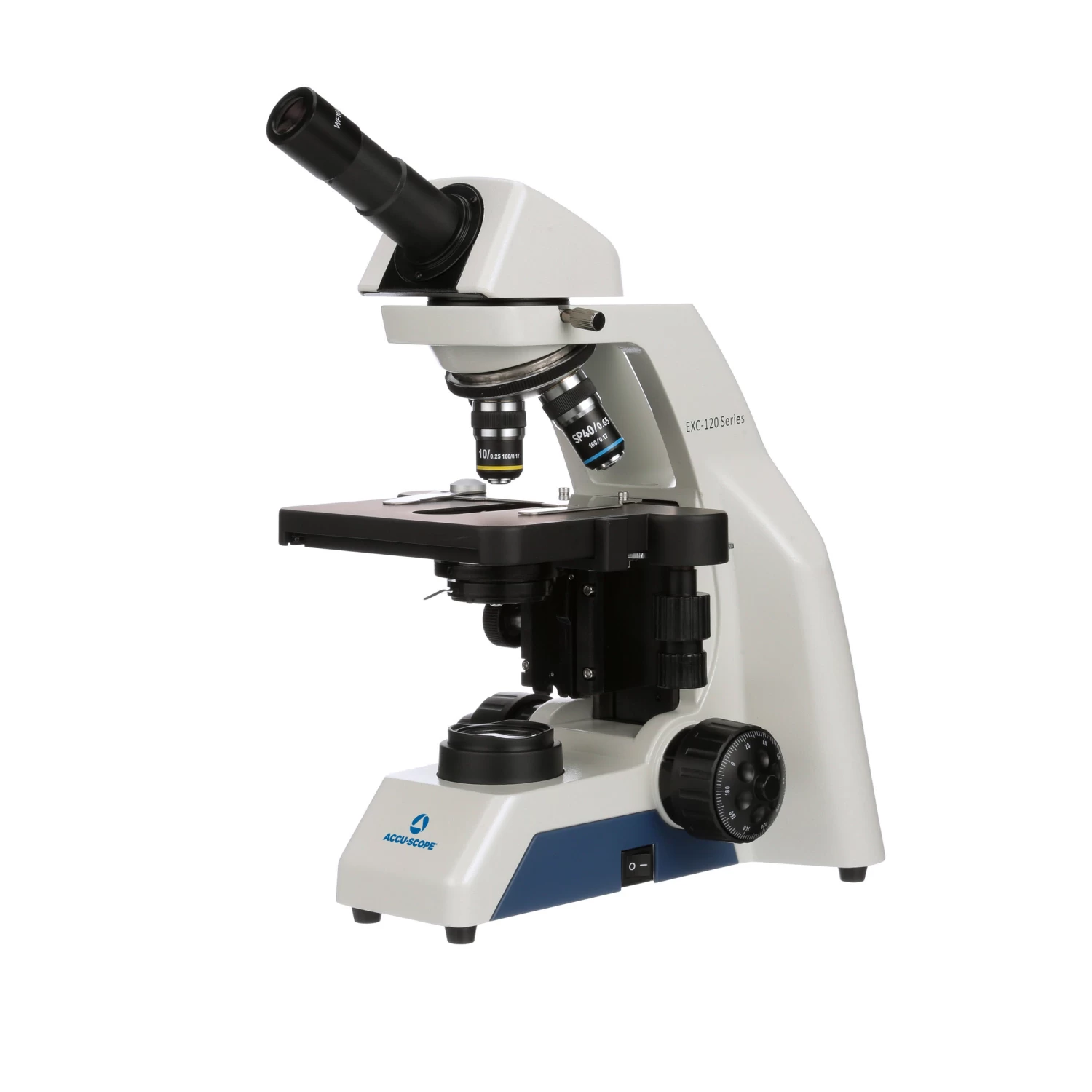

Microscope EXC-121-3 – Monocular Head, 40-400X Magnification, Achromat Objectives, Mechanical Stage, Iris Diaphragm

• ERGONOMIC || Features a low positioned coaxial focusing mechanism for complete ergonomic comfort to users during extended viewing periods
• OPTICAL EXCELLENCE || High-quality, anti-mold DIN achromat optics in 4x, 10x, and semi-plan 40xR* (*spring-loaded) objectives provide superior, 40X-400X magnification. Variable LED control with Abbe condenser and iris diaphragm delivers bright, even illumination for excellent image contrast
• ADVANCED MICROSCOPY || ACCU-SCOPE EXC-121-3 microscope is ideal for brightfield observation, phase contrast, and simple polarization microscopy
• DURABLE CONSTRUCTION || The rugged, die-cast aluminum frame with all brass gears and anti-mold optics is designed for years of heavy use. Delivers exceptional value and performance for advanced applications
• PORTABLE || With two built-in carry handles and cord wrap, this microscope is highly portable, allowing you to take it wherever you need

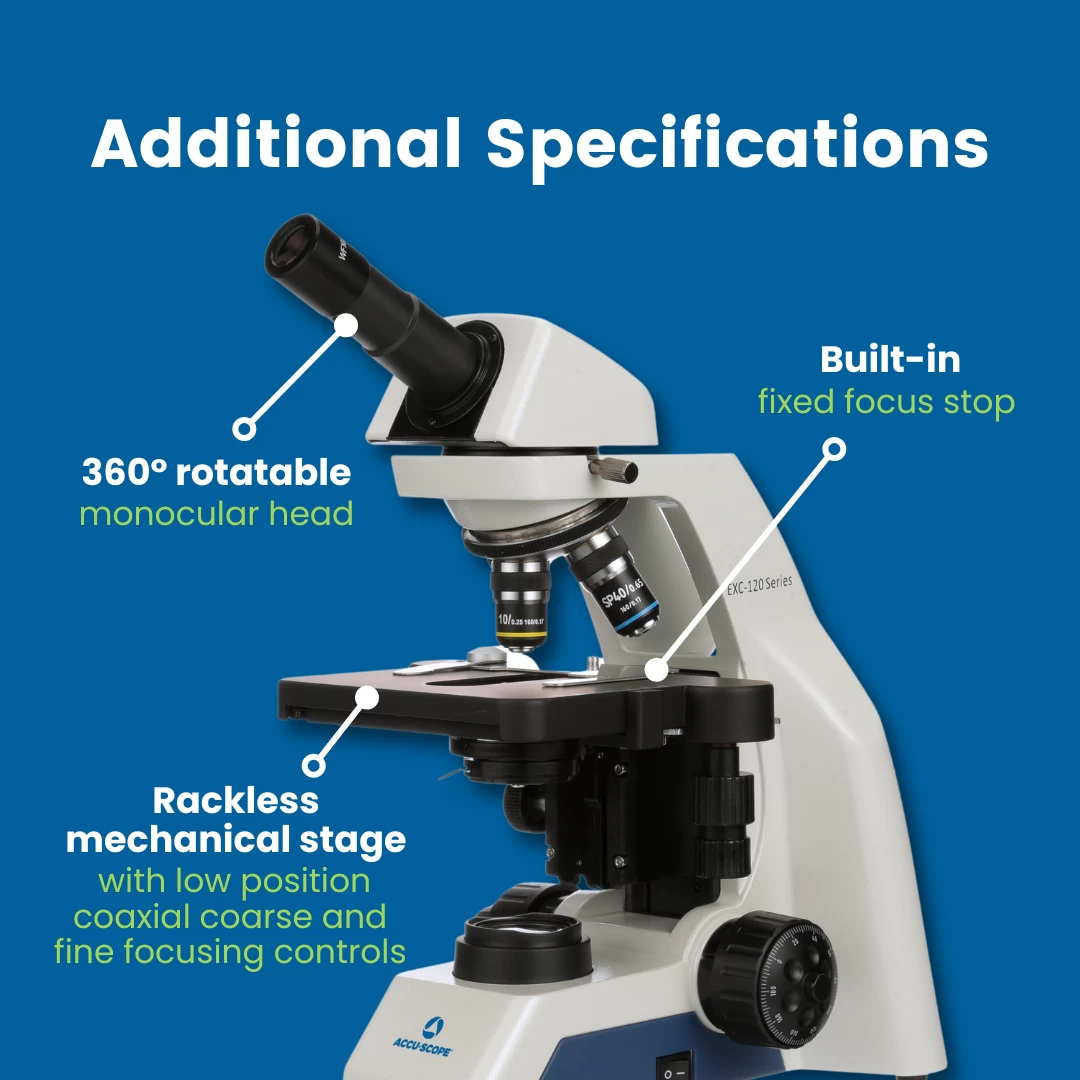

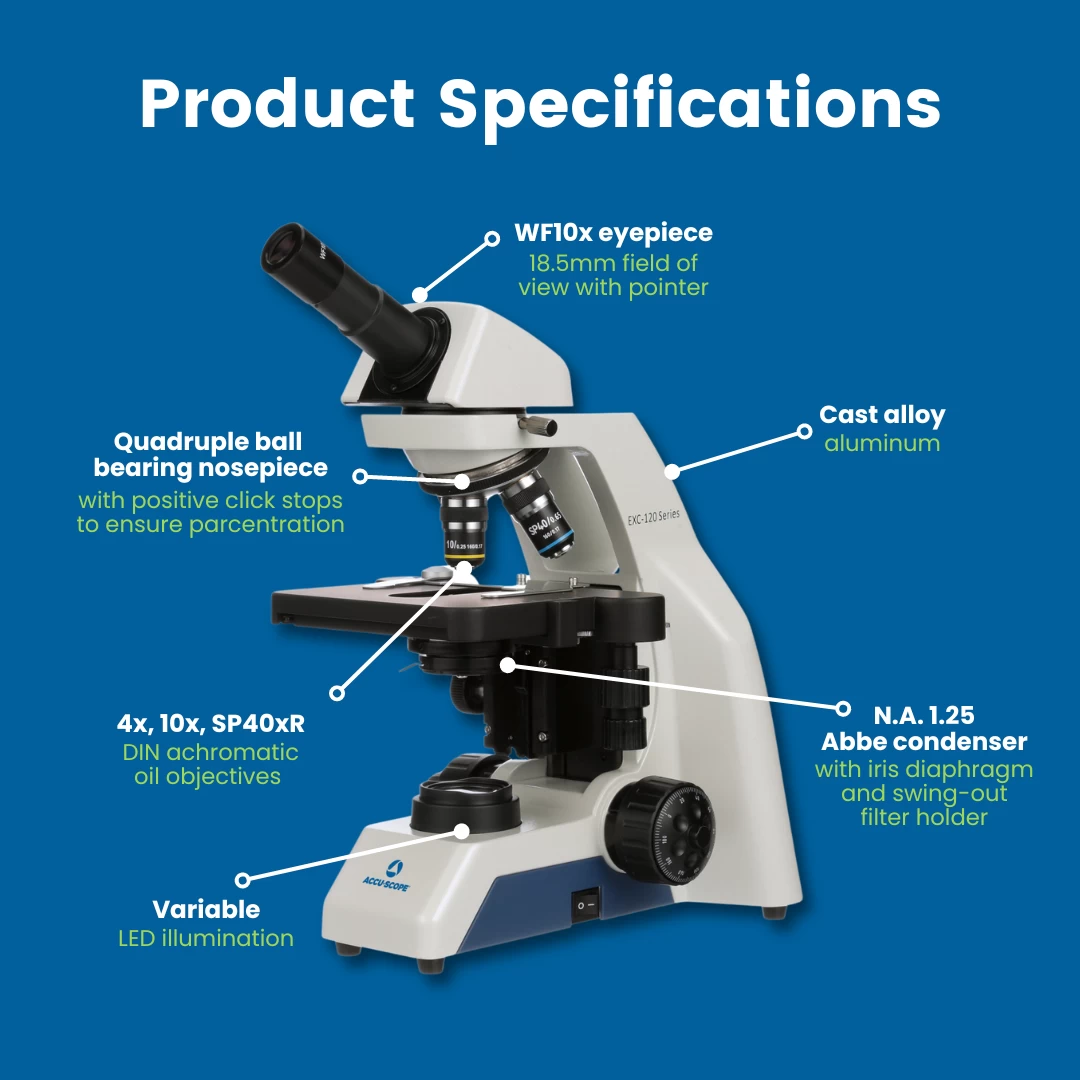

The Accu-Scope EXC-121-3 features a 360° rotatable monocular viewing head; 30° inclined WF10x/18.5mm eyepiece with pointer; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, and SP40xR objectives; rackless mechanical stage with low position coaxial coarse and fine focusing controls; and Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder. Variable LED illuminator is UL Listed. Includes dust cover, power cord, immersion oil, and manual.

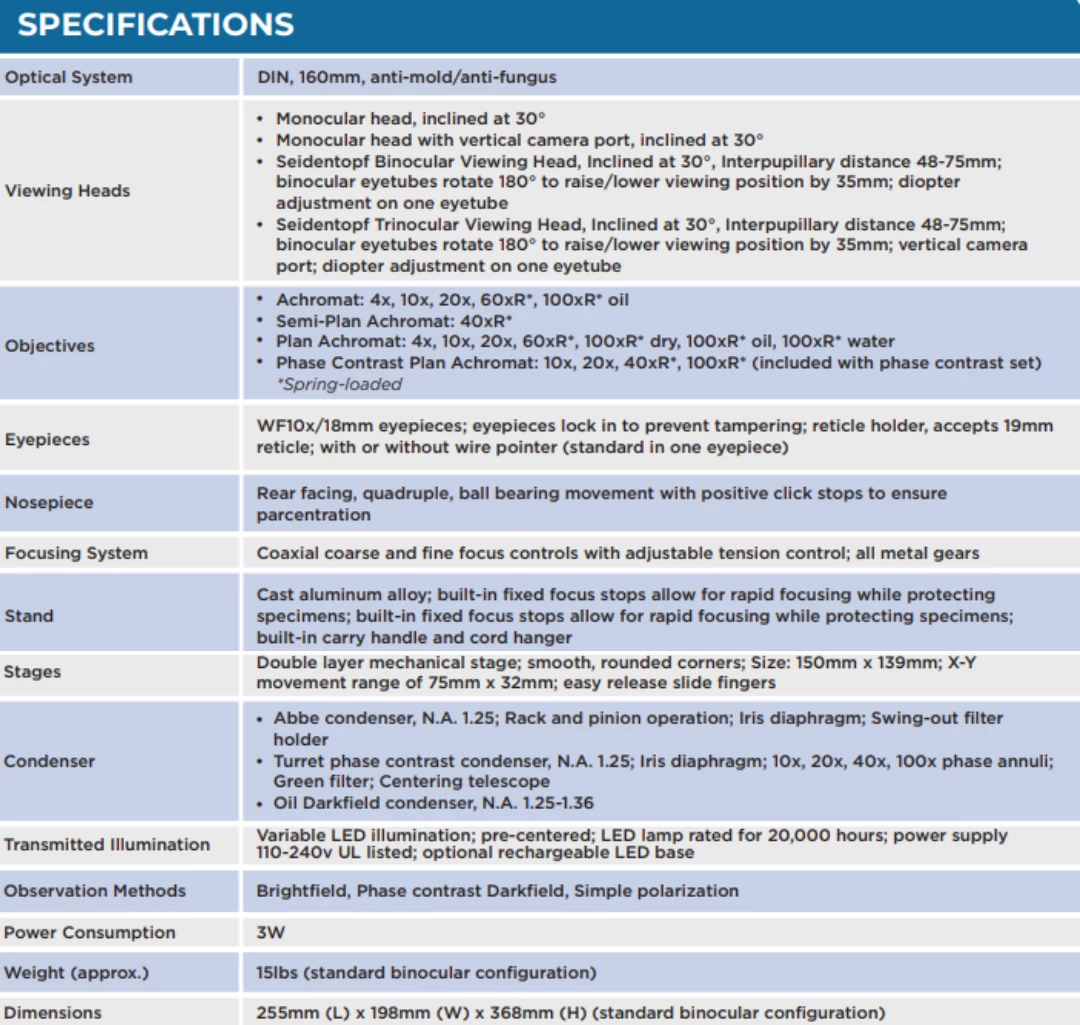

Specifications

– Optical System: DIN Optical System, f=160mm, Anti-Mold

– Viewing Head: Monocular; Inclined 30° and rotatable 360°

– Eyepieces: WF10x/18.5mm field of view, with pointer eyepiece is locked-in to prevent classroom tampering and accept 19mm reticles

– Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.

– Objectives: Achromat objectives; 4x, 10x and Semi-Plan 40xR* (*spring-loaded).

– Stage: Rackless Mechanical Stage; size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm

– Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder.

– Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger.

– Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved.

– Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears.

– Accessories: Dust cover and instruction manual included.

– Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold.

– Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

– Microscope Dimensions (LWH): 255mm x 198mm x 368mm
