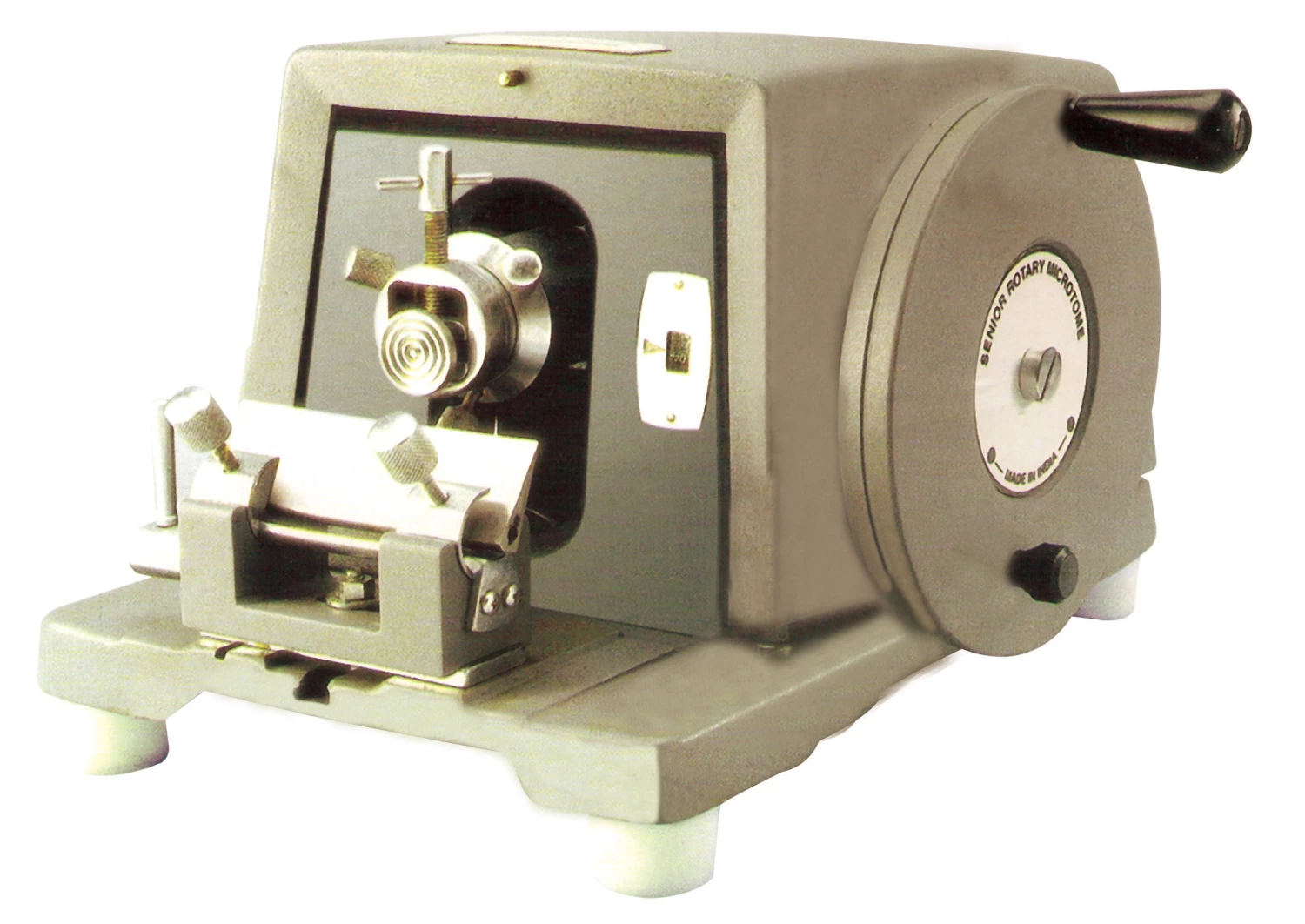

Rotary Microtome

Heavy base with hinged cover for protecting the interior mechanism,and knife holder. A razor 120 mm made from heat treated steel and tested for Micro structure is supplied.

Heavy base with hinged cover for protecting the interior mechanism,and knife holder. With every complete revolution of the drive wheel, the feed panel engaged the teeth of ratchet wheel which advances the object holder through cone and inclined plane mechanism. A safety device automatically disengages the feed mechanism. Feed indicator is in front and fed setting is at back of microtome which sets 1-50 micron. A razor 120 mm made from heat treated steel and tested for Micro structure is supplied. There is arrangement to tilt angle of razor adjustable up to 30º on reference scale.Feed adjustment : 1-50 MicronMinimum thickness : 1 MicronTotal Feed excursion : 28 mm Opening of object clamp.Overall Size : 40 x 38 x 23 cm with wooden case.Net Weight : 30 kg approx.
