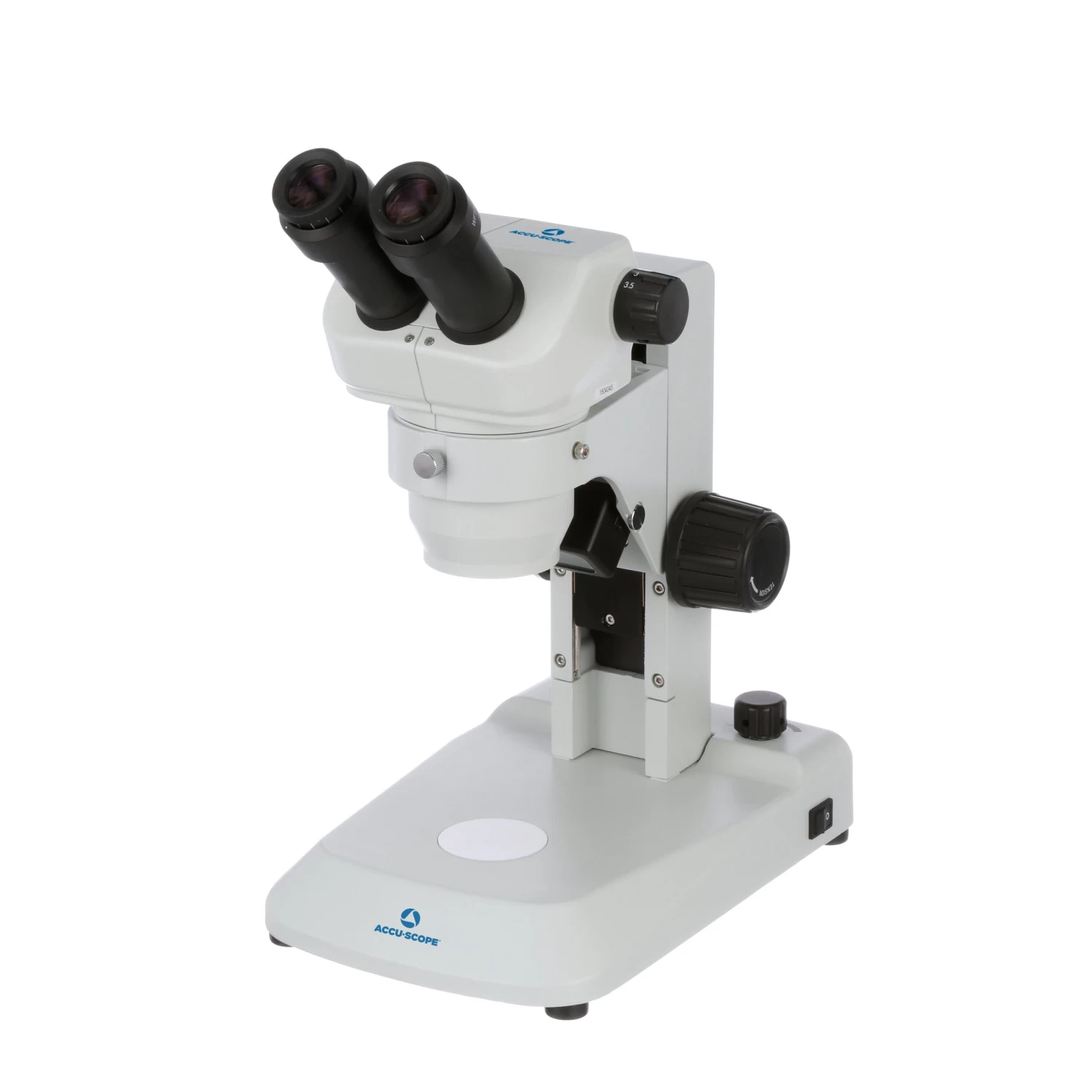

Stereo Microscope 3078-LED – 8-35X Zoom Magnification

• CRISP IMAGES AT 8X-35X|| The Stereo Microscope is designed for years of dependable observation. It comes equipped with a Greenough optical system; 8-35X zoom magnification; and variable LED incident and transmitted illumination to deliver sharp, high resolution, 3-dimensional views of your samples
• ZOOM MAGNIFICATION || The zoom feature allows for smoothly increasing or decreasing magnification to reach the optimal setting for your particular sample
• OPTICAL EXCELLENCE || Manufactured using the latest optical coatings, the 3078-LED Zoom Stereomicroscope produces superb image resolution, outstanding depth of field and unsurpassed image clarity
• DURABLE CONSTRUCTION || Designed for years of heavy use, the 3078-LED Zoom Stereo Microscope is ruggedly built, precision engineered, and is airtight, allowing for use in any production or industrial environment
• GREAT FOR SCHOOL, GEM LABS, RESEARCH, & MANUFACTURING || Designed for a variety of disciplines including life science and dissection, assembly and manufacturing, gemology and jewelry making, and more. A generous 95mm working distance between the lens shield and stage supports a wide range of sample sizes

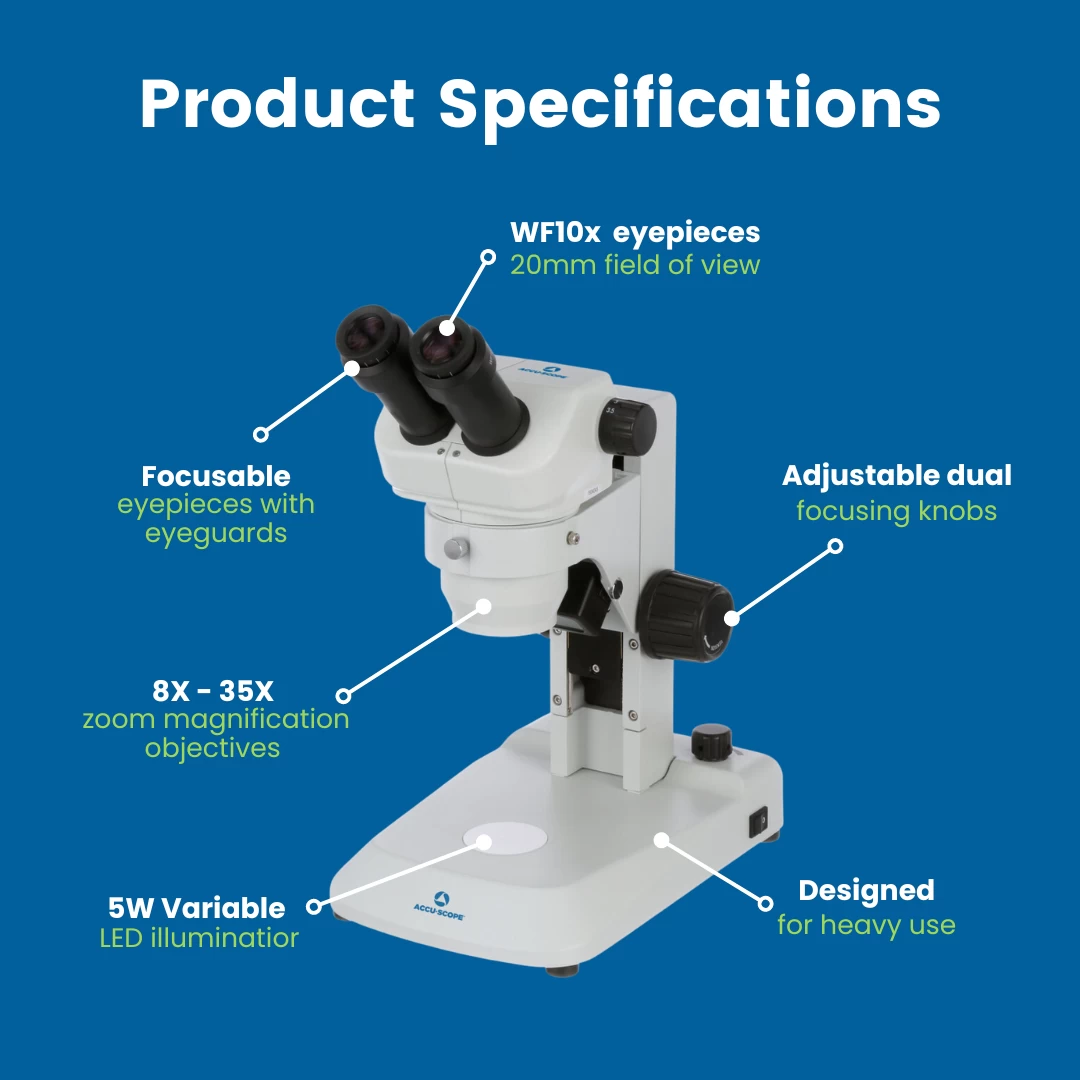

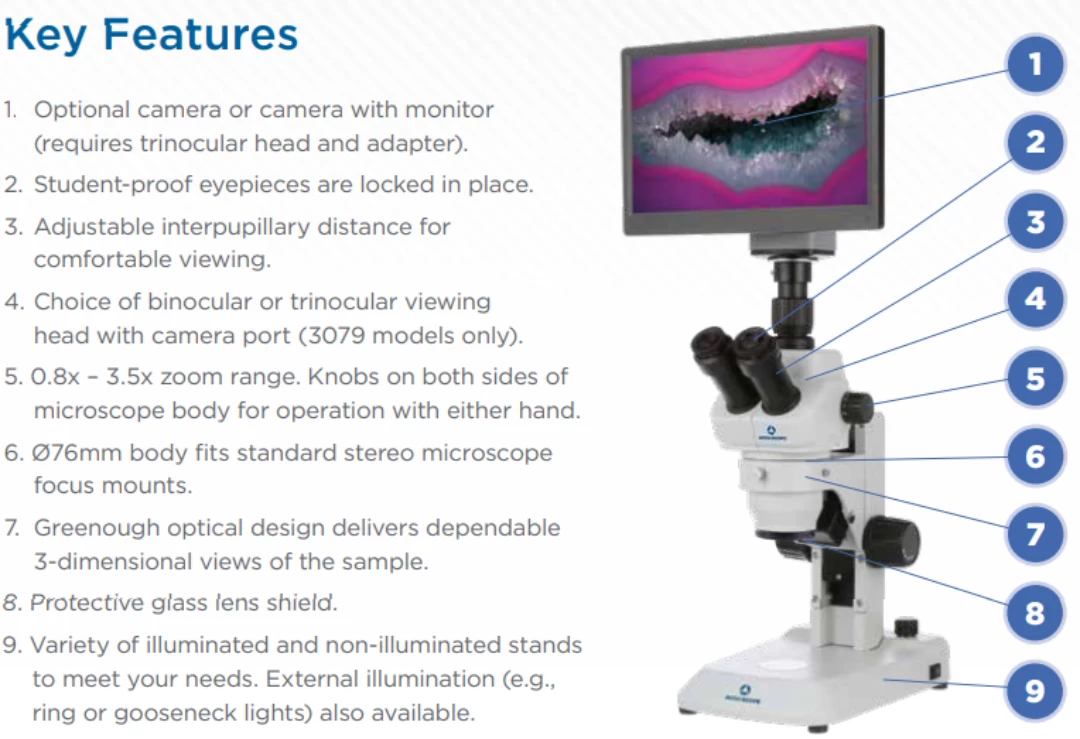

Easy to use and student friendly, the 3078-LED Zoom Stereomicroscope delivers sharp, high resolution, 3-dimensional views of your samples. It Features inclined 45° WF10x/20mm focusable eyepieces with eyeguards, an 0.8X to 3.5X zoom range (8X -35X with 10X eyepieces), with 1.0x glass lens shield dovetail focusing stand with coarse focus adjustment & stage plate. Variable 5 watt LED incident and transmitted illuminators provide bright, even light. Includes a 100-240V universal power supply, dust cover and manual.

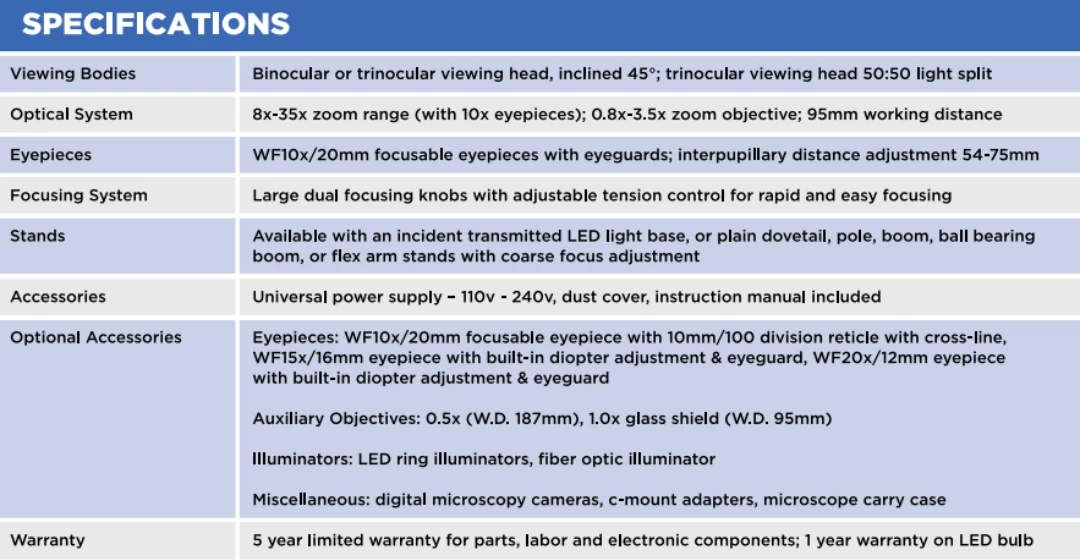

Specifications

– Optical System: Greenough

– Viewing Head: Binocular viewing head, inclined 45°. Interpupillary distance adjustment 54-75mm, diopter adjustment +/- 5

– Eyepieces: WF10x focusable eyepieces, 20mm field of view. Eyeguards included

– Objectives: Zoom magnification objective 0.8X – 3.5X (8X – 35X with 10X eyepieces). 1X glass shield included.

– Focusing System: Dual focusing knobs with adjustable tension control

– Stage: Diffused stage plate in the base provides even illumination

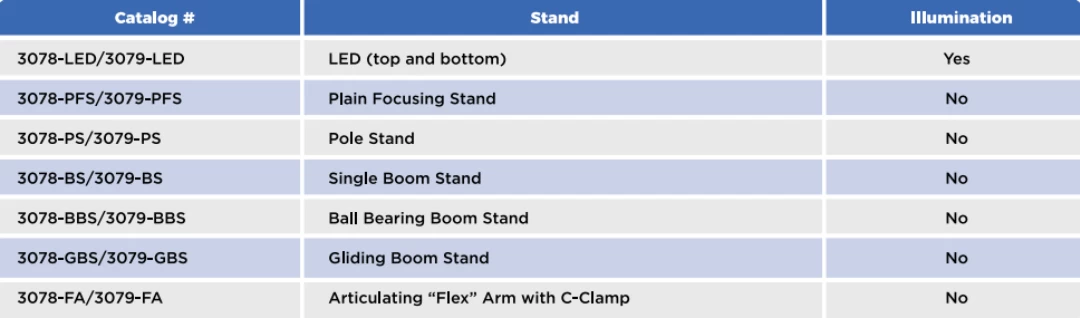

– Stand: Variable LED incident and transmitted illumination, coarse focusing stand, 100mm focusing travel, 5W variable LED transmitted and reflected illuminators, ø76mm pod holder

– Accessories: Universal power supply (110V-240V), dust cover, and instruction manual included

– Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved

– Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

– Microscope Dimensions (LWH): 175mm x 275mm x 300mm
